F7434 Industrial wifi 3G GPS tracking modem router for wifi bus, GPS platform
General
F7434 GPS+WCDMA WIFI ROUTER is a kind of cellular terminal device that provides data transmission function by public WCDMA/HSDPA/HSUPA/HSPA+ network. and GPS function. It adopts high-powered industrial 32-bits CPU and embedded real time operating system. It supports RS232 (or RS485/RS422), Ethernet and WIFI port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial, Ethernet and WIFI devices with only basic configuration. Also, it supports GPS function. |
It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.
Product Feature
Design for Industrial Application
High-powered industrial cellular module
High-powered industrial 32bits CPU
High-powered industrial GPS module
Support low-consumption mode, including sleep mode, scheduled online/offline mode, scheduled power-on/power-off mode(optional)
Housing: iron, providing IP30 protection.
Power range: DC 5~35V
Stability andReliability
Support hardware and software WDT
Support auto recovery mechanism, including online detect, auto redial when offline to make router always online
Ethernet port: 1.5KV magnetic isolation protection
RS232/RS485/RS422 port: 15KV ESD protection
SIM/UIM port: 15KV ESD protection
Power port: reverse-voltage and overvoltage protection
Antenna port: lightning protection(optional)
Standard and Convenience
Support standard RS232(or RS485/RS422), Ethernet and WIFI port that can connect to serial, Ethernet and WIFI devices directly
Support standard WAN port and PPPOE protocol that can connect to ADSL directly
Support intellectual mode, enter into communication state automatically when powered
Provide management software for remote management
Support several work modes
Convenient configuration and maintenance interface（WEB or CLI）
High-performance
Support multiple WAN access methods, including static ip, DHCP, L2TP, PPTP,PPPOE,3G/HSPA/4G.
Support GPS function
Support double link backup between WCDMA and WAN(PPPOE, ADSL) (optional)
Support VPN client(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
Support VPN server(PPTP, L2TP, OPENVPN, IPSEC and GRE)(only for VPN version)
Support local and remote firmware upgrade,import and export configure file.
Support NTP, RTC embedded.
Support mulitiple DDNS provider service.
Support VLANs, MAC Address clone, PPPoE Server
WIFI support 802.11b/g/n. support AP, client, Adhoc, Repeater, Repeater Bridge and WDS(optional) mode.
WIFI support WEP,WPA,WPA2 encryption,Support RADIUS authentication and MAC address filter.
Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout
Support APN/VPDN
Support DHCP server and client, firewall, NAT, DMZ host , URL block, QoS, ttraff,statistics, real time link speed statistics etc.
Full protocol support , such as TCP/IP, UDP, ICMP, SMTP, HTTP, POP3, OICQ, TELNET, FTP, SNMP, SSHD, etc.
Schedule Reboot, Schedule Online and Offline,etc.
Product Specification
Cellular Specification
Cellular Module | Industrial cellular module |
Standard and Band | UMTS/WCDMA/HSDPA/HSUPA/HSPA+ 850/1900/2100MHz, 850/900/1900/2100MHz(optional) GSM850/900/1800/1900MHz GPRS/EDGE CLASS 12 |
Bandwidth | HSUPA:5.76Mbps(Upload speed)/ HSDPA:7.2Mbps(Download speed)/UMTS:384Kbps (DL/UL)/ HSPA+: 21Mbps(Download speed) |
TX power | <24dBm |
RX sensitivity | <-109dBm |
GPS Specification
Item | Content |
GPS Module | Industrial GPS module |
Receiver Type | 50-channle GPS L1（1575.42MHz）C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN Support GALILEO |
Max. update rate | 4 Hz |
Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE |
Acquisition | Cold starts: 29S Warm starts: 29S Aided starts: <1S Hot starts: <1S |
Sensitivity | Tracking: -160dBm Reacquisition: -160dBm Cold starts: -144dBm |
Timing accuracy | RMS: 30ns 99%: <60ns Granularity: 21ns |
Time pulse | Configurable, 0.25 to 1000Hz |
WIFI Specification
Item | Content |
Standard | IEEE802.11b/g/n |
Bandwidth | IEEE802.11b/g: 54Mbps (max) IEEE802.11n: 150Mbps (max) |
Security | WEP, WPA, WPA2, etc. WPS (optional) |
TX power | 21.5dBm（11g），26dBm（11b） |
RX sensitivity | <-72dBm@54Mpbs |
Hardware System
Item | Content |
CPU | Industrial 32bits CPU |
FLASH | 8MB(Extendable to 64MB) |
SDRAM | 64MB |
Interface type
System Topology
Item | Content |
WAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
LAN | 4 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection |
Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps |
Indicator | "Power", "System", "Online", "GPS", " Local Network ", "WAN", "WIFI", “Signal Strength” |
Antenna | Cellular: Standard SMA female interface, 50 ohm WIFI: Standard SMA male interface, 50 ohm GPS: standard SMA female interfaces, 50 ohm |
System Topology
Product Tags:
|
|

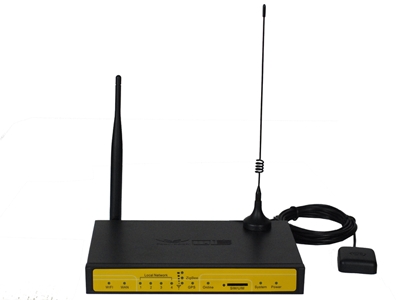

F7434 Industrial wifi 3G GPS tracking modem router for wifi bus, GPS platform Images
|
